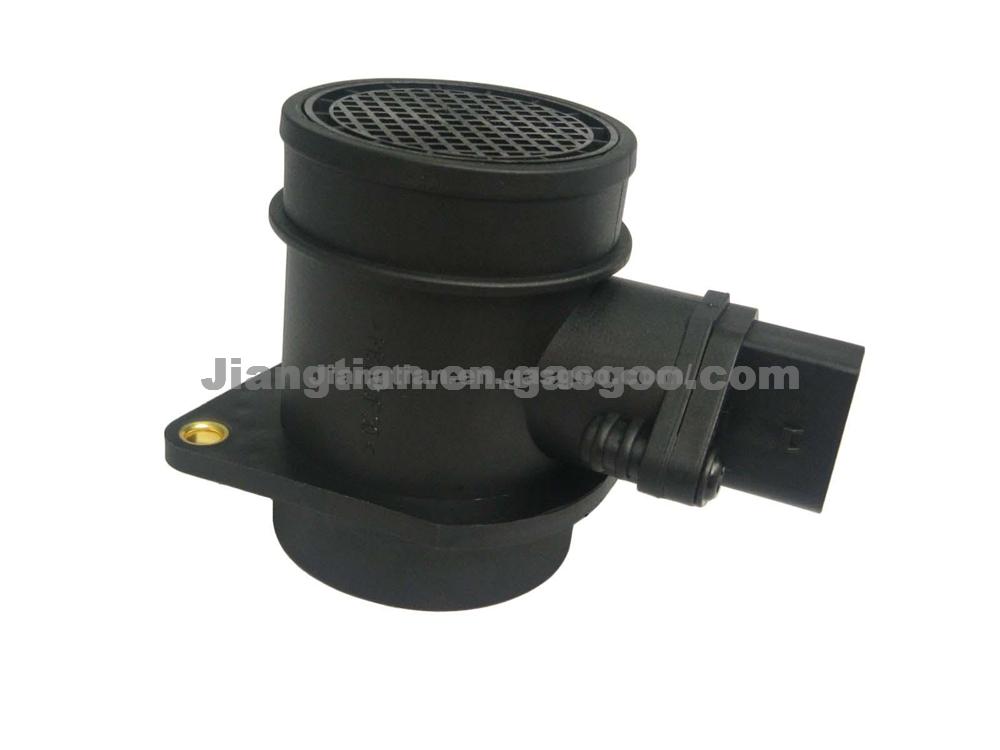

Air Flow Meter 0 280 218 023
Mercedes Benz ( C Class(china)) Mercedes Benz ( E Class(china), G Class, M Class, A Class, R Class, Gl Class, Cls Class, Clk Class)
MAF Mass Air Flow Sensor,Mass Air Flow Meter,MAF Sensor,Auto Senor BOSCH:0 280 218 023 BOSCH:0 280 218 100 BOSCH:0 280 218 063 Main technical parameters: Work voltage:14V DC Output voltage: 0.5v ACCURACY: equal or lesser than 3% Response time: equal or lesser than 15ms Application temperature: -40+125°c Electric current :equal or lesser than350mA OEM NO.: 06A 906 461 C APPLICATION: AUDI A3 (8L1) 1.8 T Hatchback AUDI A3 (8L1) 1.8 T Hatchback AUDI A3 (8L1) 1.8 T quattro Hatchback AUDI A3 (8L1) 1.8 T quattro Hatchback AUDI TT (8N3) 1.8 T Coupe AUDI TT (8N3) 1.8 T quattro Coupe AUDI TT Roadster (8N9) 1.8 T Convertible VW GOLF IV Cabriolet (1E7) 2.0 Convertible VW PASSAT (3B2) 1.8 T Saloon 1) Hot-film sensor head: It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe. (Temperature coefficient: 3850ppm; and response time15ms) 296%AL2O3, 2Aluminum Ceramics Substrate(96% AL2O3 )with high dielectric constant substrate good conductivity-temperature performance ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices)but Thermal performance is not very good. 3) The main circuit board: Used the technical of thick film Hybrid Integrated Circuit,which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm) 4) All the devices and materials are strictly accordance with the Automotive Industry Standard: -40 ~ 125 degrees 5). Advanced laser function testing equipment makes sure the products with good consistency and stability before sales. 6) Perfect means of detection and the silicone rubber sealing make our products have better capacity of shock resistance and Moisture resistance and heat resistance. 7) Products through strict aging screening, to avoid premature failure of products flow into the marke
