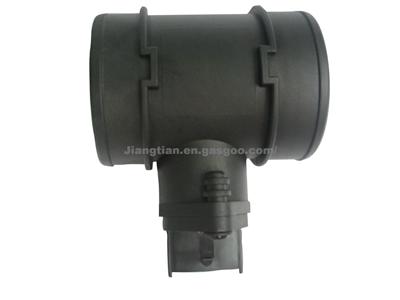

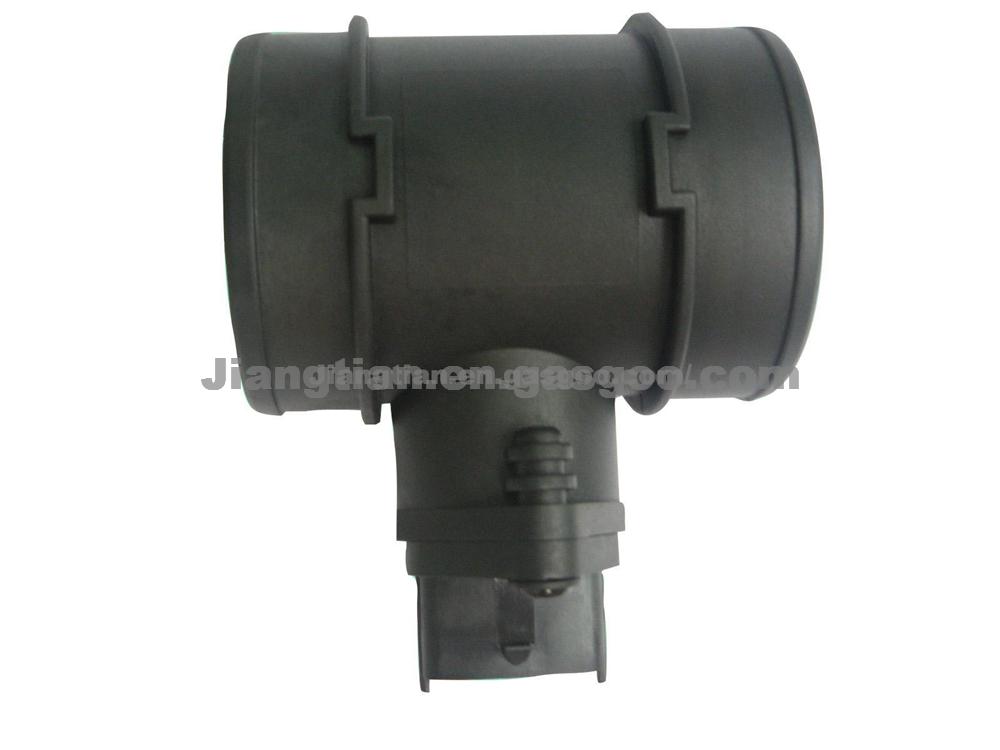

Air Flow Meter 0 280 218 019
Mercedes Benz ( C Class(china)) Mercedes Benz ( E Class(china), G Class, M Class, A Class, R Class, Gl Class, Cls Class, Clk Class)
MAF Mass Air Flow Sensor,Mass Air Flow Meter,MAF Sensor,Auto Senor Main technical parameters: Work voltage:14V DC Output voltage05v Application temperature: -40+125°c ACCURACY: equal or lesser than 3% Electric current :equal or lesser than350mA Response time: equal or lesser than 15ms BOSCH:0 280 218 019 OEM NO.: 46541253 46447503 60814852 APPLICATION: FIAT BRAVA(182) 1.9JTD/2.0 HGT 20V ALFA 145(930)1.6I.E.16V ALFA 146(930)1.6I.E.16V ALFA 156(932)1.6/1.8/2.0 16V/1.9/2.4JTD ALFA 166(936)2.0SPARK/2.4JTD ALFA GTV 1.8 16V 2.0T.SPARK 16V All the devices and materials are strictly accordance with the Automotive Industry Standard: -40 ~ 125 degrees Aluminum Ceramics Substrate(96% AL2O3 )with high dielectric constant substrate good conductivity-temperature performance to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices)but Thermal performance is not very good. The main circuit board: Used the technical of thick film Hybrid Integrated Circuit,which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm) Surface Mount Technology and advanced metal bonding process: the main circuit board using surface mount technology for all devices, then hot-air reflow soldering. Sensor head and the main circuit board use spun gold binding; between the main circuit board and the bracket using Si-Al-wire binding. Ensures that the circuits can good bonding when in an instant case of over current. Advanced laser function testing equipment makes sure the products with good consistency and stability before sales. Perfect means of detection and the silicone rubber sealing make our products have better capacity of shock resistance and Moisture resistance and heat resistance. Products through strict aging screening, to avoid premature failure of products flow into the marke
