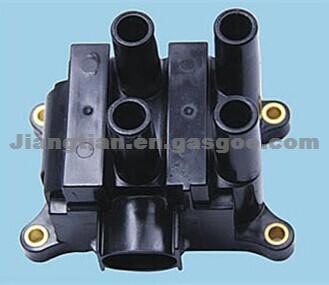

Ignition Coil Ford 988F-12029-AB
Size:7.5mm
Voltage:12v
G.W:0.4kg
Pins:1pins
Ford
Ignition Coil Ford 988F-12029-AB Product structure description:The ignition coil is the role of the 12V voltage shift power is 15 ~ 20kV high voltage. 1 open magnetic circuit ignition coil traditional open magnetic circuit ignition coil, consists of an iron core, winding, bakelite cover, porcelain etc.. (1) the iron core is composed of mutually insulated laminated by a strip steel, sheet by oxidation layer or is coated with an insulating isolation, the outer sleeve with an insulating sleeve, and its role is to enhance the flux. (2) the primary winding wire diameter of 0.5 ~ 1.0mm enameled wire wound on the primary winding of the outer layer, and heat, the primary winding is 230 ~ 370 turns. Outside the package several layers of insulating paper, to enhance the insulation. (3) the secondary winding wire diameter of 0.06 ~ 0.10mm enameled wire wound on the core insulation casing outside, about 11000 ~ 26000 turns. (4) between the steel sleeve primary winding and the shell is provided with magnetic steel sleeve. (5) the use of six sulfur hexafluoride (SF6) gas insulated or the plastic insulation
