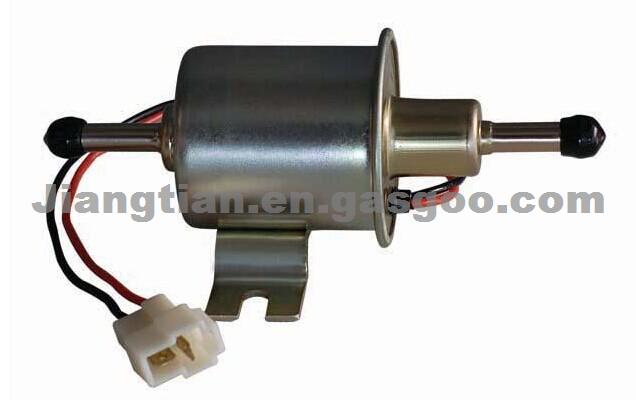

Fuel Pump Honda Hep-02a
Voltage:12v
Pressure:2bar
Wide Open Flow:45l/h
Shut Off Pressure:3bar
G.W:0.1kg
Color:White
Honda
Fuel Pump Honda Hep-02a Product structure description:The main features of the fuel pump is compact in structure, low in cost,; have a one-way oil inlet, an oil spill function. DC motor and pump body structure, the shell of the motor and the pump shell cavity of integrated design, export and motor pump connected, in space, saves the material, reduces the size, the fuel in the pump thrust, from the inlet into the push to export, cavity, enters into the electric machine, finally the electric fuel pump outlet, the flow process of fuel, can take away the heat generated by the motor, the cooling effect. When the engine stops working, in order to keep the auto oil pressure, the one-way valve is arranged in the outlet structure of electric fuel pump; at the same time in order to prevent the oil plug, fuel pump pressure circuit broken, the relief valve in the fuel pump with pressure relief. Working principle: after the permanent magnet electric motor driven rotary pump body into the fuel oil from the inhalation device, flows through the electric fuel pump inside, the mo uth from the pressure of oil to fuel oil supply system.
