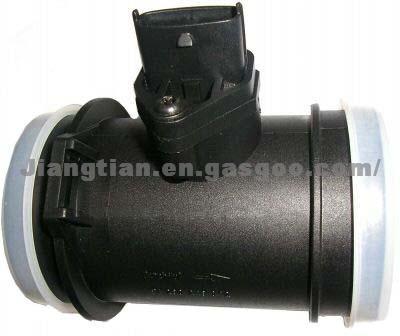

Air Flow Meter 0 280 218 012

Air Flow Meter 0 280 218 012
Air Flow Meter 0 280 218 012
OEM No/Model:

0 280 218 012

Minimum Order:


Export Ratio:

91% - 100%



Place of Region:


Payment Terms:


Price Terms:


Delivery Port:


Delivery Time:


Market Type:

After Market


gift box/pc

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Air Flow Meter 0 280 218 012


Mercedes Benz ( C Class(china))
Mercedes Benz ( E Class(china), G Class, M Class, A Class, R Class, Gl Class, Cls Class, Clk Class)

Product Description:

MAF Mass Air Flow Sensor,Mass Air Flow Meter,MAF Sensor,Auto Senor

BOSCH:0 280 218 012

Application temperature: -40+125°c

Work voltage:14V DC

Electric current :equal or lesser than350mA

Output voltage05v

MHK 101070




Ferra 360 modena(131)360  fi 03

Ferra 360 modena spider(131) 360  02 .00

Honda accord vll(cg)2.0 turbo 02. 9

Mg mg zs 2.0 tg01. 04

Rover 200(rf)200sdi ll. 95-03.00

Rover 25 (rf)idr 10.991) Hot-film sensor head: It is our company independently developed by platinum, material taken from American well-known manufacturer of electronic slurry, in order to ensure the products have a good temperature probe.

(Temperature coefficient: 3850ppm; and response time15ms)
2Aluminum Ceramics Substrate(96% AL2O3 )with high dielectric constant substrate and good conductivity-temperature performance, to ensure that the circuit perform stability in high-low temperature state. General factory with using epoxy board (low prices)but Thermal performance is not very good.
3) The main circuit board: Used the technical of  thick film Hybrid Integrated Circuit,which is commonly used in developed countries in the international area, thick-film resistors with higher resistance accuracy (3%) and a smaller temperature coefficient (less than 100ppm)
4) All the devices and materials are strictly accordance with the Automotive Industry Standard: -40 ~ 125 degrees

5) Surface Mount Technology and advanced metal bonding process: the main circuit board using surface mount technology for all devices, then hot-air reflow soldering. Sensor head and the main circuit board use spun gold binding; between the main circuit board and the bracket using Si-Al-wire binding. Ensures that the circuits can good bonding when in an instant case of over current.
6). Advanced laser function testing equipment makes sure the products with good consistency and stability before sales.

7) Perfect means of detection and the silicone rubber sealing make our products have better capacity of shock resistance and Moisture resistance and heat resistance.

8) Products through strict aging screening, to avoid premature failure of products flow into the marke


Air Flow Meter 0 280 218 012
Air Flow Meter 0 280 218 012
